TGM-LKM

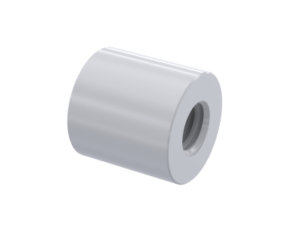

In combination with the rolled trapezoidal threads of high surface quality, the ready-to-install plastic nuts are often an alternative to conventional materials. Particularly low-noise and in many cases lubrication-free, plastic opens up completely new areas of application. The long plastic TGM-LRM nuts have a large outer diameter and can be optimally adapted to existing designs with further processing.

Lowest dynamic load factor (kN)
(kN): 0.7113
Screw diameter (mm)
Screw slope (mm)
Thread direction
Editing state
No. of threaded passages
  • 1 (20)
  • 2 (4)
Material
Name Weight Screw
diameter
Screw
slope
Editing Price CAD Model
TGM-LKM-12×3-RH 0.0120 12 3 Workpiece 11.45 CAD Modell Details
TGM-LKM-12×6-RH 0.0120 12 6 Workpiece 15.00 CAD Modell Details
TGM-LKM-14×4-LH 0.0320 14 4 Finished 18.32 CAD Modell Details
TGM-LKM-14×4-RH 0.0320 14 4 Finished 14.43 CAD Modell Details
TGM-LKM-16×4-LH 0.0320 16 4 Workpiece 19.46 CAD Modell Details
TGM-LKM-16×4-RH 0.0320 16 4 Workpiece 1.72 CAD Modell Details
TGM-LKM-16×8-RH 0.0320 16 8 Workpiece 19.81 CAD Modell Details
TGM-LKM-18×4-LH 0.0600 18 4 Finished 19.46 CAD Modell Details
TGM-LKM-18×4-RH 0.0600 18 4 Finished 16.25 CAD Modell Details
TGM-LKM-20×16-P4-RH 0.0600 20 16 Finished 34.34 CAD Modell Details
TGM-LKM-20×4-RH 0.0060 20 4 Workpiece 22.90 CAD Modell Details
TGM-LKM-20×8-P4-RH 0.0600 20 8 Finished 29.76 CAD Modell Details
TGM-LKM-24×10-RH 0.0880 24 10 Workpiece 32.05 CAD Modell Details
TGM-LKM-24×5-RH 0.0880 24 5 Workpiece 25.19 CAD Modell Details
TGM-LKM-30×12-P6-RH 0.1500 30 12 Finished 33.92 CAD Modell Details
TGM-LKM-30×12-RH 0.1500 30 12 Finished 36.63 CAD Modell Details
TGM-LKM-30×6-RH 0.1500 30 6 Workpiece 29.76 CAD Modell Details
TGM-LKM-36×12-RH 0.3000 36 12 Workpiece 64.11 CAD Modell Details
TGM-LKM-36×6-RH 0.1500 36 6 Finished 51.52 CAD Modell Details
TGM-LKM-40×14-P7-RH 0.1500 40 14 Finished 80.14 CAD Modell Details
TGM-LKM-40×7-LH 0.3700 40 7 Finished 70.74 CAD Modell Details
TGM-LKM-40×7-RH 0.3700 40 7 Workpiece 54.95 CAD Modell Details
TGM-LKM-50×8-RH 0.5500 50 8 Workpiece 65.25 CAD Modell Details
TGM-LKM-Tr-36×6-RH 0.1500 36 6 Finished 47.70 CAD Modell Details


Showing all 24 results
