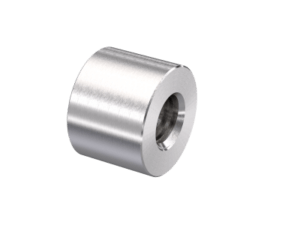

The steel nuts are mainly suitable for clamping procedures, adjustment movements in manual operation, and as fastening nuts. The short steel nut has a large outer diameter, which provides space for individual adjustments.
Material: 1.0718 (11SMnPb30)

Lowest dynamic load factor (kN)
(kN): 0.7 — 113
Screw diameter (mm)
Screw slope (mm)
Thread direction
Editing state
No. of threaded passages
  • 1 (44)
Material
Name Weight Screw
diameter		 Screw
slope		 Editing Preis € CAD Model
TGM-KSM-10×2-LH 0.0360 10 3 Workpiece 6.30 CAD Modell Details
TGM-KSM-10×2-LH 0.0370 10 3 Workpiece 6.68 CAD Modell Details
TGM-KSM-10×2-RH 0.0370 10 2 Workpiece 4.23 CAD Modell Details
TGM-KSM-10×3-LH 0.0360 10 3 Workpiece 7.21 CAD Modell Details
TGM-KSM-10×3-RH 0.0360 10 3 Workpiece 5.38 CAD Modell Details
TGM-KSM-12×3-LH 0.0640 12 3 Workpiece 7.21 CAD Modell Details
TGM-KSM-12×3-RH 0.0600 12 3 Workpiece 4.35 CAD Modell Details
TGM-KSM-14×3-LH 0.9600 14 3 Workpiece 6.64 CAD Modell Details
TGM-KSM-14×3-RH 0.0960 0 0 Workpiece 5.38 CAD Modell Details
TGM-KSM-14×4-LH 0.9600 14 4 Workpiece 7.21 CAD Modell Details
TGM-KSM-14×4-RH 0.0960 14 4 Workpiece 5.38 CAD Modell Details
TGM-KSM-16×4-LH 0.1600 16 4 Workpiece 7.79 CAD Modell Details
TGM-KSM-16×4-RH 0.1600 36 24 Workpiece 6.07 CAD Modell Details
TGM-KSM-18×4-LH 0.2200 18 4 Workpiece 8.47 CAD Modell Details
TGM-KSM-18×4-RH 0.2200 18 4 Workpiece 6.99 CAD Modell Details
TGM-KSM-20×4-LH 0.3100 20 4 Workpiece 9.04 CAD Modell Details
TGM-KSM-20×4-RH 0.3100 20 4 Workpiece 7.79 CAD Modell Details
TGM-KSM-22×5-LH 0.3300 22 5 Workpiece 9.28 CAD Modell Details
TGM-KSM-22×5-RH 0.3300 22 5 Workpiece 8.70 CAD Modell Details
TGM-KSM-24×5-LH 0.4500 22 5 Workpiece 98.45 CAD Modell Details
TGM-KSM-24×5-RH 0.4500 24 5 Workpiece 9.61 CAD Modell Details
TGM-KSM-26×5-LH 0.4700 26 5 Workpiece 13.28 CAD Modell Details
TGM-KSM-26×5-RH 0.4700 26 5 Workpiece 10.18 CAD Modell Details
TGM-KSM-28×5-LH 0.7600 28 5 Workpiece 16.83 CAD Modell Details
TGM-KSM-28×5-RH 0.7600 28 5 Workpiece 12.02 CAD Modell Details
TGM-KSM-30×6-LH 0.7900 30 6 Workpiece 16.83 CAD Modell Details
TGM-KSM-30×6-RH 0.7900 30 6 Workpiece 12.59 CAD Modell Details
TGM-KSM-32×6-LH 0.8100 32 6 Workpiece 19.23 CAD Modell Details
TGM-KSM-32×6-RH 0.8100 32 6 Workpiece 15.00 CAD Modell Details
TGM-KSM-36×6-LH 1.5000 36 6 Workpiece 22.90 CAD Modell Details
TGM-KSM-36×6-RH 1.5000 36 6 Workpiece 22.20 CAD Modell Details
TGM-KSM-40×7-LH 1.9000 40 7 Workpiece 43.46 CAD Modell Details
TGM-KSM-40×7-RH 1.9000 40 7 Workpiece 46.94 CAD Modell Details
TGM-KSM-44×7-LH 2.7000 44 7 Workpiece 53.81 CAD Modell Details
TGM-KSM-44×7-RH 2.7000 44 7 Workpiece 38.92 CAD Modell Details
TGM-KSM-48×4-LH 2.9000 48 4 Workpiece 58.38 CAD Modell Details
TGM-KSM-48×8-RH 2.9000 48 8 Workpiece 48.08 CAD Modell Details
TGM-KSM-50×8-LH 2.7000 50 8 Workpiece 61.82 CAD Modell Details
TGM-KSM-50×8-RH 2.7000 50 8 Workpiece 48.08 CAD Modell Details
TGM-KSM-60×9-LH 3.7000 60 9 Workpiece 77.85 CAD Modell Details
TGM-KSM-60×9-RH 3.7000 60 9 Workpiece 66.40 CAD Modell Details
TGM-KSM-70×10-LH 4.9000 70 10 Workpiece 101.89 CAD Modell Details
TGM-KSM-70×10-RH 4.9000 70 10 Workpiece 84.72 CAD Modell Details
TGM-KSM-80×10-LH 6.4000 80 10 Workpiece 149.97 CAD Modell Details
TGM-KSM-80×10-RH 6.4000 80 10 Workpiece 125.93 CAD Modell Details


Showing all 45 results
